floor mounted crane
The Floor Mounted Crane is a new generation of light-duty lifting equipment to adapt the modern production. Floor Mounted Crane, one main kind of jib cranes made by ANSON is a newly key lifting equipment by reference to Germany, according to user special needs . With outstanding advantages of novel structure, reasonable operation and flexible working space, it is widely used in factories, workshop production line, assembly line, warehouses, docks and other occasions of heavy lifting.
Six Key Points You Should Know about Floor Mounted Crane
- Up to 15 Ton Capacity
- Up to 33 Feet Span
- Do not press the speed button simultaneously.
- No people stand under the swing arm in working.
- Do not drag heavy objects.
- Prohibit OVERLOAD lifting.
- Control: manual rotation or electric rotation
- Application: heavy lifting in factories, workshops production lines, assembly lines, machine tools, warehouses, docks.
Technical Data of Floor Mounted Crane
| Model of jib crane | BZD0.25 | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | ||
|---|---|---|---|---|---|---|---|---|
| Capacity | Ton | 0.25 | 0.5 | 1 | 2 | 3 | 5 | |
| Lift height | Feet | According to your demand | ||||||
| Max. radius of gyration | Feet | According to your demand | ||||||
| Turning angle | Degree | 360 | ||||||
| Lifting speed | Normal | Ft/Min | 13/33/26 | 16/33/26 | 16/26 | 13/26 | 26 | 26 |
| Slow | Ft/Min | 3/8/2.6 | 4/8 | 4/7/3 | 3/2.6 | 2.6 | 2.6 | |
| Travel speed | Ft/Min | 46/66 | 46/65.6 | 46/65.6 | 46/65.6 | 65.6 | 65.6 | |
| Angle of revolution speed | Ft/Min | 3 | 2.6 | 2 | 2 | 3 | 2 | |

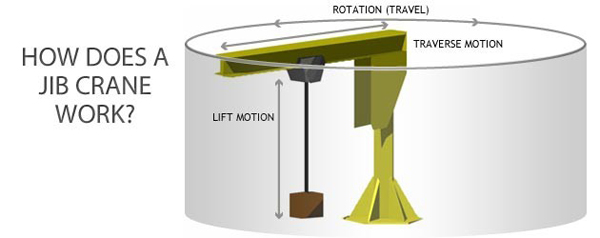

How Does A Floor Mounted Crane Work?
Floor Mounted Crane is composed by the column device, rotated device, rotating arm device and electric chain hoists and other components, which includes up column, below column, main beam, main beam lever, lifting mechanism (electric chain hoist), rotate device, electrical systems, ladders and maintenance platform. Fixed on the lower end of the column based on concrete, according to user needs adjusts arm rotation. Floor Mounted Crane with a high reliability electric chain hoist is particularly suitable for short distances, thanks to frequent and intensive lifting operations, high efficiency, energy saving, easy operation and maintenance.
